Descriptif détaillé

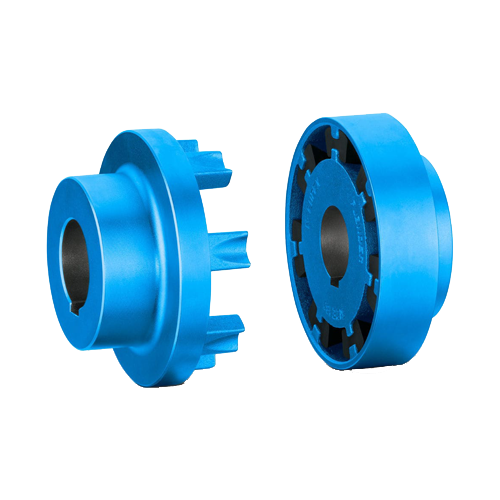

Damping shaft coupling that can be used universally to compensate for shaft misalignment
Nominal torque range from TKN = 19 Nm up to 62,000 Nm with 23 sizes
Temperature range: from –50 °C to +100 °C

Due to their torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX couplings are made of high-quality cast iron. The flexible elements made of synthetic rubber (Buna-N) are available in different degrees of hardness for many applications. Metal pins and flexible elements are designed so that no wear occurs when they are properly fitted.
